HF型沖壓外圈滾針離合器

型號： P5F48D20A1D993
品牌： XND-新諾德

銷售價：
會員價： 最低起 更多會員價
市場價：
商品評分： (共0人評論)

數量： -+
我要詢價

商品詳情

品牌：XND-新諾德
所屬分類：滾柱式單向離合器
商品編號：G5F48D20A1D95C

<div style="text-align: center;"><font color="#ff0000" face="Times New Roman" size="7"><strong>XND-HF型 沖壓外圈滾針離合器</strong></font></div><div style="text-align: center;">
<img src="http://www.sexcamscout.com/public/images/53/16/20/2e60d7107830d4503bbfdb167837d3b490d371f4.jpg?1743318475#h"></div><div>
<p style="text-align: left;"><font size="4">      XND-HF型沖壓外圈滾針離合器是一種外星輪式超越離合器。滾針是鎖緊元件。它由薄壁沖壓外圈、保持架、鑲嵌于保持架中的異形彈簧和裝入保持架中鎖緊元件滾針組成的。異形彈簧使?jié)L針始終貼緊在沖壓外圈內徑偏心圓弧工作面上，又因滾針的質量很小，所以允許較高的轉換頻率，并且有高的反向鎖緊精度。常用于印刷機械、包裝機械、紡織機械、食品機械、家用電器、輕工機械及測試設備等。常用轉矩
0.34N · m - 121 N · m ，適用于高轉速，一般為 3900 - 34000r/min 。選用這種離合器用戶自己的軸的硬度要達到 HRC58 -
62 ，而且尺寸精度和形位公差要達到要求。</font></p>
<p style="text-align: center;">

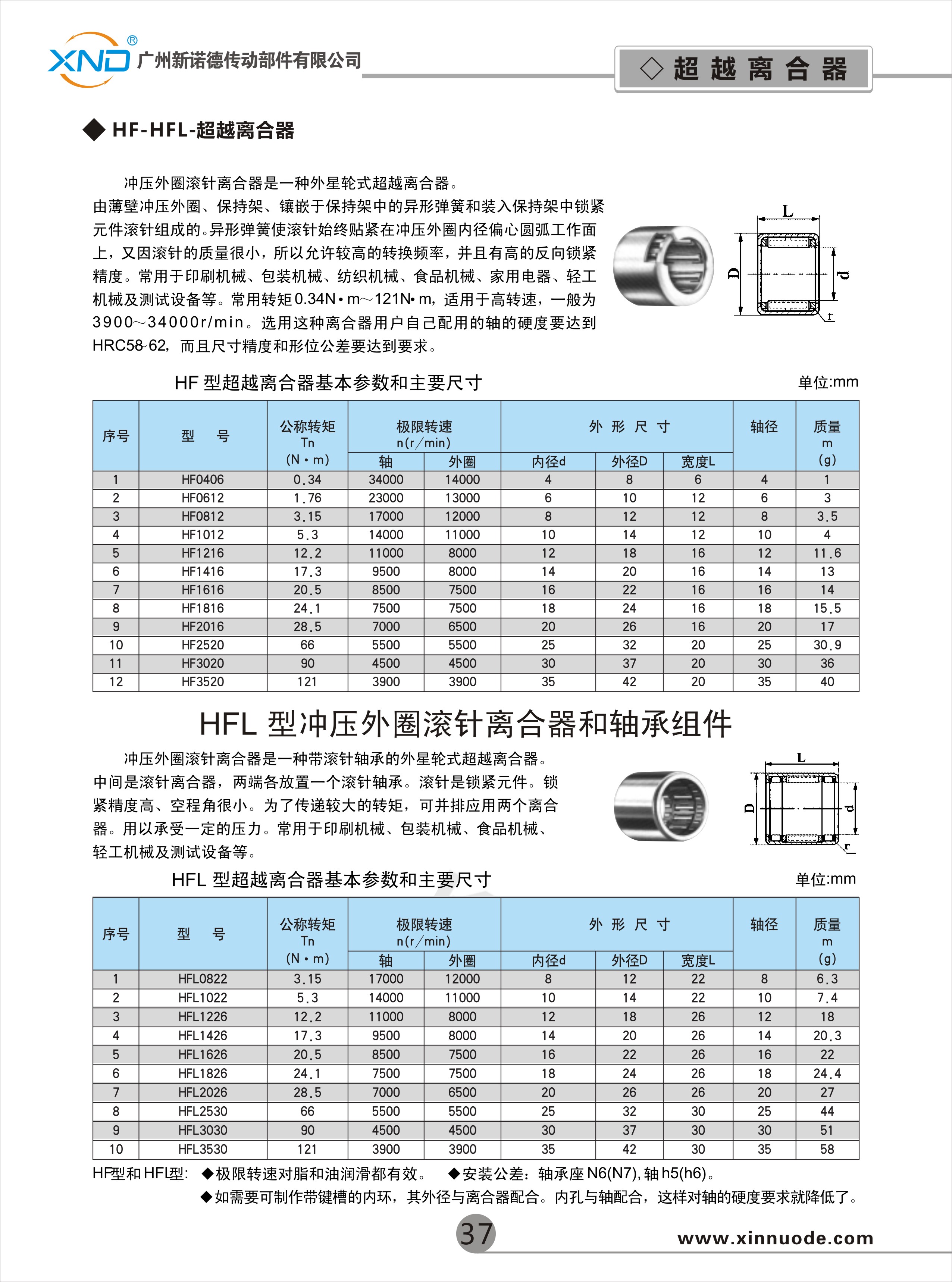

<img src="http://www.sexcamscout.com/public/images/b8/4e/ec/ddd5eeb87b7b3c7b53d9d3fbed859d8e3efd9391.jpg?1743317782#h"></p>
<table class="tb_2" cellspacing="0" cellpadding="0" width="553" border="0" style="text-align: center;">
<tbody>
<tr>
<td class="hei1_9" colspan="7"> </td>
<td class="bai_10" colspan="3"> </td></tr>
<tr>
<td class="hei1_9" colspan="7">HF 型沖壓外圈滾針離合器基本參數和主要尺寸</td>
<td class="bai_10" colspan="3">長度單位:mm</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" rowspan="2" width="28">序<br/>號</td>
<td class="tb_line4" rowspan="2" width="94">型號</td>
<td class="tb_line2" height="20" width="69">公稱<br/>轉矩</td>
<td class="tb_line4" height="20" colspan="2">極限轉速<br/>n(r/min)</td>
<td class="tb_line4" colspan="3">外形尺寸</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="50">軸徑</td>
<td class="tb_line4" rowspan="2" width="47">
<p align="center">質量<br/>m(g)</p>
</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" bgcolor="#ff7f00">Tn<br/>(N·m)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="47">軸 </td>
<td class="tb_line4" bgcolor="#ff7f00" width="40">外圈</td>
<td class="tb_line4" width="58">內徑d</td>
<td class="tb_line4" width="61">外徑D</td>
<td class="tb_line4" width="59">寬度L</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">1</td>
<td class="tb_line" height="22">HF0406</td>
<td class="tb_line" height="22">0.34</td>
<td class="tb_line5" height="22">34000</td>
<td class="tb_line" height="22">14000</td>
<td class="tb_line5" height="22">4</td>
<td class="tb_line5" height="22">8</td>
<td class="tb_line" height="22">6</td>
<td class="tb_line" height="22">4</td>
<td class="tb_2" height="22">1</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">2</td>
<td class="tb_line" height="22">HF0612</td>
<td class="tb_line" height="22">1.76</td>
<td class="tb_line5" height="22">23000</td>
<td class="tb_line" height="22">13000</td>
<td class="tb_line5" height="22">6</td>
<td class="tb_line5" height="22">10</td>
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">6</td>
<td class="tb_2" height="22">3</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">3</td>
<td class="tb_line" height="22">HF0812</td>
<td class="tb_line" height="22">3.15</td>
<td class="tb_line5" height="22">17000</td>
<td class="tb_line" height="22">12000</td>
<td class="tb_line5" height="22">8</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">8</td>
<td class="tb_2" height="22">3.5</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">4</td>
<td class="tb_line" height="22">HF1012</td>
<td class="tb_line" height="22">5.3</td>
<td class="tb_line5" height="22">14000</td>
<td class="tb_line" height="22">11000</td>
<td class="tb_line5" height="22">10</td>
<td class="tb_line5" height="22">14</td>
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">10</td>
<td class="tb_2" height="22">4</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">5</td>
<td class="tb_line" height="22">HF1216</td>
<td class="tb_line" height="22">12.2</td>
<td class="tb_line5" height="22">11000</td>
<td class="tb_line" height="22">8000</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line5" height="22">18</td>
<td class="tb_line" height="22">16</td>
<td class="tb_line" height="22">12</td>
<td class="tb_2" height="22">11.6</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">6</td>
<td class="tb_line" height="22">HF1416</td>
<td class="tb_line" height="22">17.3</td>
<td class="tb_line5" height="22">9500</td>
<td class="tb_line" height="22">8000</td>
<td class="tb_line5" height="22">14</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line" height="22">16</td>
<td class="tb_line" height="22">14</td>
<td class="tb_2" height="22">13</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">7</td>
<td class="tb_line" height="22">HF1616</td>
<td class="tb_line" height="22">20.5</td>
<td class="tb_line5" height="22">8500</td>
<td class="tb_line" height="22">7500</td>
<td class="tb_line5" height="22">16</td>
<td class="tb_line5" height="22">22</td>
<td class="tb_line" height="22">16</td>
<td class="tb_line" height="22">16</td>
<td class="tb_2" height="22">14</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">8</td>
<td class="tb_line" height="22">HF1816</td>
<td class="tb_line" height="22">24.1</td>
<td class="tb_line5" height="22">7500</td>
<td class="tb_line" height="22">7500</td>
<td class="tb_line5" height="22">18</td>
<td class="tb_line5" height="22">24</td>
<td class="tb_line" height="22">16</td>
<td class="tb_line" height="22">18</td>
<td class="tb_2" height="22">15.5</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">9</td>
<td class="tb_line" height="22">HF2016</td>
<td class="tb_line" height="22">28.5</td>
<td class="tb_line5" height="22">7000</td>
<td class="tb_line" height="22">6500</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">26</td>
<td class="tb_line" height="22">16</td>
<td class="tb_line" height="22">20</td>
<td class="tb_2" height="22">17</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">10</td>
<td class="tb_line" height="22">HF2520</td>
<td class="tb_line" height="22">66</td>
<td class="tb_line5" height="22">5500</td>
<td class="tb_line" height="22">5500</td>
<td class="tb_line5" height="22">25</td>
<td class="tb_line5" height="22">32</td>
<td class="tb_line" height="22">20</td>
<td class="tb_line" height="22">25</td>
<td class="tb_2" height="22">30.9</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">11</td>
<td class="tb_line" height="22">HF3020</td>
<td class="tb_line" height="22">90</td>
<td class="tb_line5" height="22">4500</td>
<td class="tb_line" height="22">4500</td>
<td class="tb_line5" height="22">30</td>
<td class="tb_line5" height="22">37</td>
<td class="tb_line" height="22">20</td>
<td class="tb_line" height="22">30</td>
<td class="tb_2" height="22">36</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">HF3520</td>
<td class="tb_line" height="22">121</td>
<td class="tb_line5" height="22">3900</td>
<td class="tb_line" bgcolor="#bdbec0" height="22">3900</td>
<td class="tb_line5" height="22">35</td>
<td class="tb_line5" height="22">42</td>
<td class="tb_line" height="22">20</td>
<td class="tb_line" height="22">35</td>
<td class="tb_2" height="22">40</td></tr></tbody></table><br/></div><div style="text-align: center;">

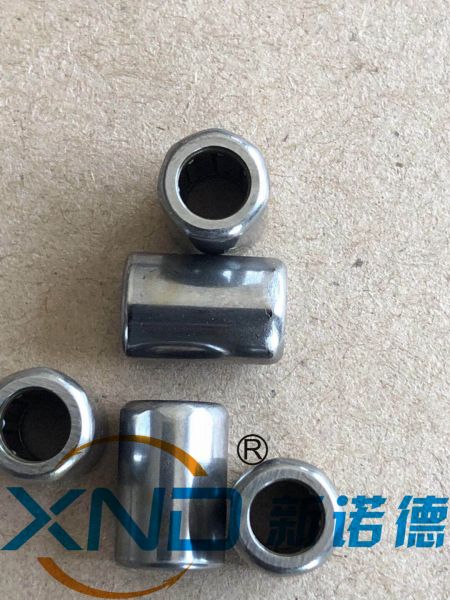

<img src="http://xinnuode.com/public/images/c3/6b/41/4701f0b0d219048221244886504ce92a728a5f67.jpg?1598607789#h"></div>
