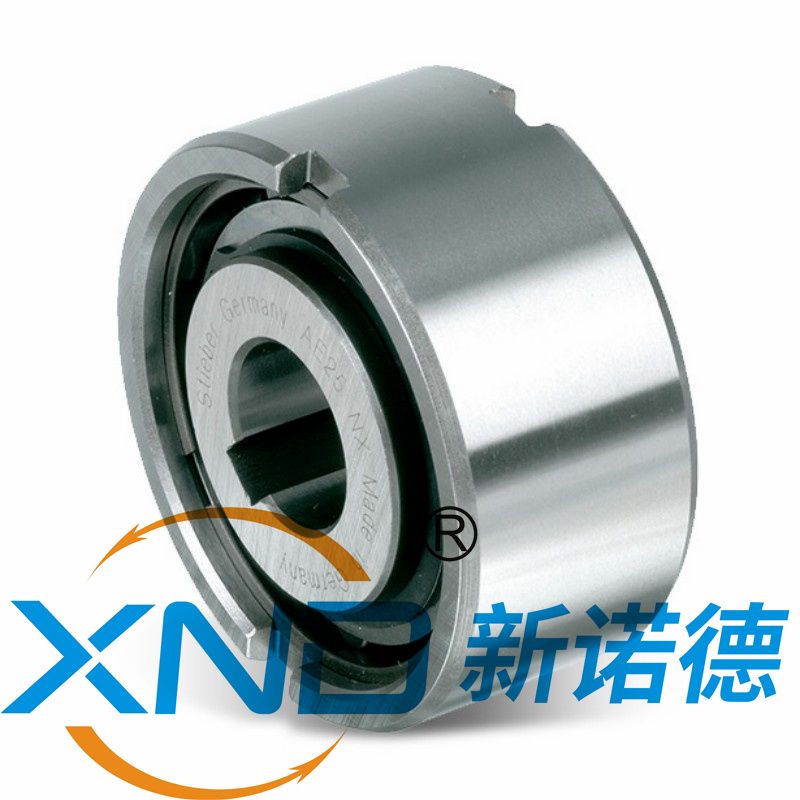

CGD 型滾柱式單向超越離合器

CGD 型超越離合器

型號： 000004
品牌： XND-新諾德

銷售價：
會員價： 最低起 更多會員價
市場價：
商品評分： (共0人評論)

數量： -+
我要詢價

商品詳情

品牌：XND-新諾德
所屬分類：滾柱式單向離合器
商品編號：G5F48CEA3C6053

<div style="text-align: center;">XND-CGD型 滾柱式單向超越離合器</div><div style="text-align: center;">
<img src="http://xinnuode.com/public/images/bb/0b/dd/4ab7d6e0cbacc0fa3ed2095f0d7aca3a13abbf2d.jpg?1672387978#w"></div><div style="text-align: left;">CGD

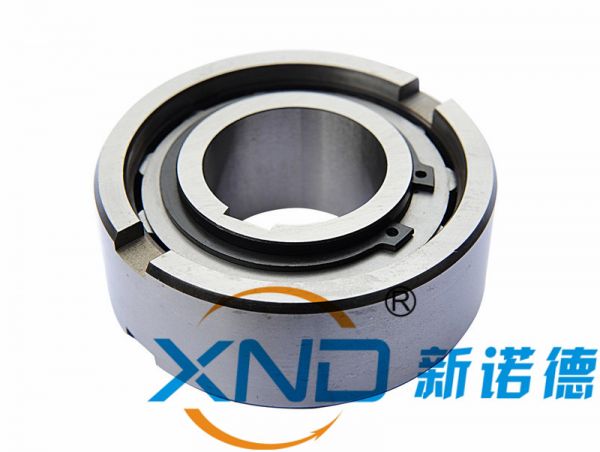

型超越離合器為無軸承支撐，外環兩端面帶鍵槽的滾柱式超越離合器。使用時需配軸承以防止軸向與徑向負載。內環與軸用鍵連接，外環兩側的端面有止動槽用于固定外環與機架以傳遞轉矩。常用于包裝、印刷、食品、紡織、輕工等機械上。</div><div style="text-align: center;">
<img src="http://xinnuode.com/public/images/1e/9a/d9/4a97ece9dd49bd92c37a2f1525a99a707069694d.jpg?1672387892#w"></div><div style="text-align: left;"><table cellspacing="0" cellpadding="0" width="533" border="0"><tbody><tr>
<td class="style1" colspan="6">
CGD 超越離合器基本參數和主要尺寸
</td>
<td class="bai_10" colspan="4">單位:mm</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" rowspan="2" width="37">序 號</td>
<td class="tb_line4" rowspan="2" width="102">型號</td>
<td class="tb_line2" rowspan="2" width="78">公稱 轉矩 Tn (N·m)</td>
<td class="tb_line2" rowspan="2" width="75">超越極 限轉速 n (r/min)</td>
<td class="tb_line4" bgcolor="#ff7f00" height="20" colspan="5">外形尺寸</td>
<td class="tb_line4" rowspan="2" width="45">
質量 m ( kg)
</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" bgcolor="#ff7f00" width="36">d(H7)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="36">D(h7)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="41">L</td>
<td class="tb_line4" bgcolor="#ff7f00" width="50">b×t</td>
<td class="tb_line4" bgcolor="#ff7f00" width="53">b1×t1</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">
1
</td>
<td class="tb_line" height="22">
CGD37×20-12
</td>
<td class="tb_line" height="22">
15
</td>
<td class="tb_line" height="22">
1500
</td>
<td class="tb_line5" height="22">
12
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
37
</td>
<td class="tb_line5" height="22">
20
</td>
<td class="tb_line5" height="22">
6×2.5
</td>
<td class="tb_line" height="22">
4×1.7
</td>
<td class="tb_2" height="22">
0.15
</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">
2
</td>
<td class="tb_line" height="22">
CGD47×19-15
</td>
<td class="tb_line" height="22">
40
</td>
<td class="tb_line" height="22">
1200
</td>
<td class="tb_line5" height="22">
15
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
47
</td>
<td class="tb_line5" height="22">
19
</td>
<td class="tb_line5" height="22">
6×2.5
</td>
<td class="tb_line" height="22">
5×1.7
</td>
<td class="tb_2" height="22">
0.13
</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">
3
</td>
<td class="tb_line" height="22">
CGD60×20-20
</td>
<td class="tb_line" height="22">
90
</td>
<td class="tb_line" height="22">
1050
</td>
<td class="tb_line5" height="22">
20
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
60
</td>
<td class="tb_line5" height="22">
20
</td>
<td class="tb_line5" height="22">
6×2.5
</td>
<td class="tb_line" height="22">
6×2.7
</td>
<td class="tb_2" height="22">
0.27
</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">
4
</td>
<td class="tb_line" height="22">
CGD62×20-25
</td>
<td class="tb_line" height="22">
110
</td>
<td class="tb_line" height="22">
850
</td>
<td class="tb_line5" height="22">
25
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
62
</td>
<td class="tb_line5" height="22">
20
</td>
<td class="tb_line5" height="22">
8×2.5
</td>
<td class="tb_line" height="22">
8×2.0
</td>
<td class="tb_2" height="22">
0.28
</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">
5
</td>
<td class="tb_line" height="22">
CGD72×27-30
</td>
<td class="tb_line" height="22">
200
</td>
<td class="tb_line" height="22">
700
</td>
<td class="tb_line5" height="22">
30
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
72
</td>
<td class="tb_line5" height="22">
27
</td>
<td class="tb_line5" height="22">
10×2.6
</td>
<td class="tb_line" height="22">
8×2.0
</td>
<td class="tb_2" height="22">
0.51
</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">
6
</td>
<td class="tb_line" height="22">
CGD80×31-35
</td>
<td class="tb_line" height="22">
230
</td>
<td class="tb_line" height="22">
600
</td>
<td class="tb_line5" height="22">
35
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
80
</td>
<td class="tb_line5" height="22">
31
</td>
<td class="tb_line5" height="22">
12×4.0
</td>
<td class="tb_line" height="22">
10×2.5
</td>
<td class="tb_2" height="22">
0.71
</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">
7
</td>
<td class="tb_line" height="22">
CGD90×33-40
</td>
<td class="tb_line" height="22">
350
</td>
<td class="tb_line" height="22">
550
</td>
<td class="tb_line5" height="22">
40
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
90
</td>
<td class="tb_line5" height="22">
33
</td>
<td class="tb_line5" height="22">
12×4.1
</td>
<td class="tb_line" height="22">
10×3.0
</td>
<td class="tb_2" height="22">
0.82
</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">
8
</td>
<td class="tb_line" height="22">
CGD105×36-45
</td>
<td class="tb_line" height="22">
450
</td>
<td class="tb_line" height="22">
500
</td>
<td class="tb_line5" height="22">
45
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
105
</td>
<td class="tb_line5" height="22">
36
</td>
<td class="tb_line5" height="22">
12×3.0
</td>
<td class="tb_line" height="22">
10×3.0
</td>
<td class="tb_2" height="22">
1.60
</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">
9
</td>
<td class="tb_line" height="22">
CGD130×36-50
</td>
<td class="tb_line" height="22">
600
</td>
<td class="tb_line" height="22">
450
</td>
<td class="tb_line5" height="22">
50
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
130
</td>
<td class="tb_line5" height="22">
36
</td>
<td class="tb_line5" height="22">
14×5.0
</td>
<td class="tb_line" height="22">
14×3.8
</td>
<td class="tb_2" height="22">
2.49
</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">
10
</td>
<td class="tb_line" height="22">
CGD130×46-60
</td>
<td class="tb_line" height="22">
1000
</td>
<td class="tb_line" height="22">
370
</td>
<td class="tb_line5" height="22">
60
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
130
</td>
<td class="tb_line5" height="22">
46
</td>
<td class="tb_line5" height="22">
14×5.0
</td>
<td class="tb_line" height="22">
14×3.5
</td>
<td class="tb_2" height="22">
2.90
</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">
11
</td>
<td class="tb_line" height="22">
CGD150×46-70
</td>
<td class="tb_line" height="22">
1450
</td>
<td class="tb_line" height="22">
300
</td>
<td class="tb_line5" height="22">
70
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
150
</td>
<td class="tb_line5" height="22">
46
</td>
<td class="tb_line5" height="22">
14×5.0
</td>
<td class="tb_line" height="22">
14×3.5
</td>
<td class="tb_2" height="22">
4.60
</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">
12
</td>
<td class="tb_line" height="22">
CGD170×58-80
</td>
<td class="tb_line" height="22">
2000
</td>
<td class="tb_line" height="22">
280
</td>
<td class="tb_line5" height="22">
80
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
170
</td>
<td class="tb_line5" height="22">
58
</td>
<td class="tb_line5" height="22">
20×7.5
</td>
<td class="tb_line" height="22">
22×5.4
</td>
<td class="tb_2" height="22">
6.09
</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">
13
</td>
<td class="tb_line" height="22">
CGD190×64-90
</td>
<td class="tb_line" height="22">
3500
</td>
<td class="tb_line" height="22">
250
</td>
<td class="tb_line5" height="22">
90
</td>
<td class="tb_line5" bgcolor="#ff7f00" height="22">
190
</td>
<td class="tb_line5" height="22">
64
</td>
<td class="tb_line5" height="22">
20×8.0
</td>
<td class="tb_line" height="22">
25×5.4
</td>
<td class="tb_2" height="22">
8.20
</td></tr>
<tr class="hei1_9" bgcolor="#ffffff">
<td colspan="10">
◆CGD 型相當于 UHF 系列、德國 STIEBER 的 ASNU 系列。
</td></tr></tbody></table></div>
