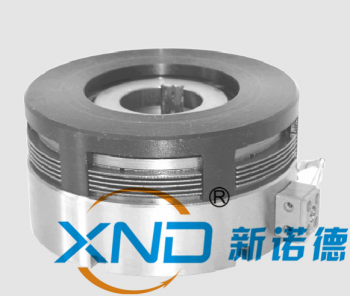

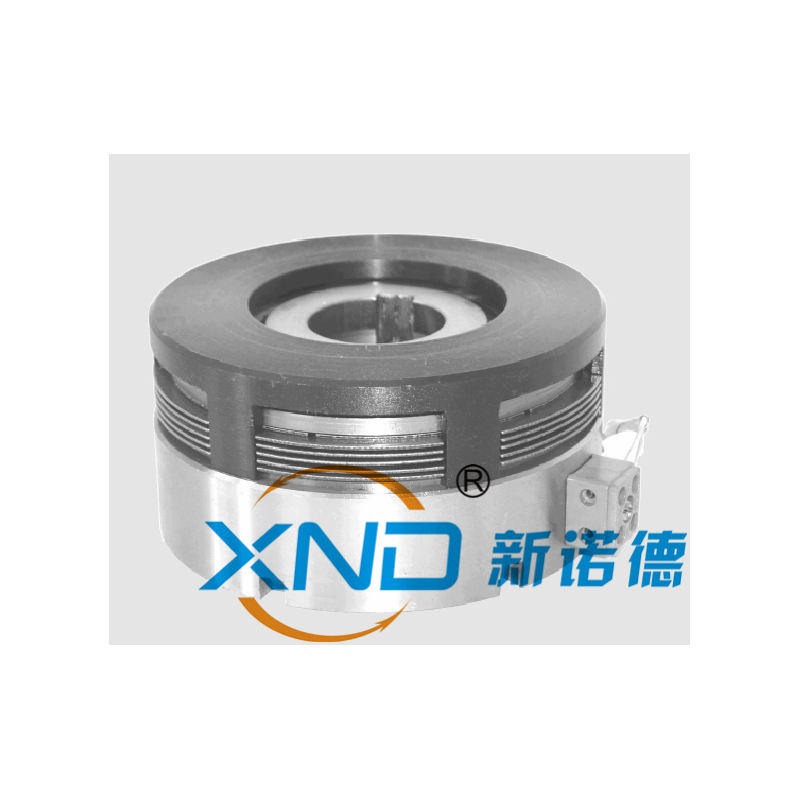

DLM9系列無滑環濕式多片電磁離合器

型號： P5F7D8E9E09DC4
品牌： XND-新諾德

銷售價：
會員價： 最低起 更多會員價
市場價：
商品評分： (共0人評論)

數量： -+
我要詢價

商品詳情

品牌：XND-新諾德
所屬分類：多片電磁離合器
商品編號：G5F7D8E9E09D78

<div style="text-align: center;"><font face="Microsoft Yahei" size="6" color="#ff0000">DLM9系列 無滑環濕式多片電磁離合器</font></div><div style="text-align: center;">
<img src="http://xinnuode.com/public/images/d3/fc/f9/fe805098fe2c7bdb06780f03464989599f92f46d.png?1602063973#w"></div><div><div><font class="zzi">商品說明</font>
<div   id="wvjspg3hwr"   class="clear5" style="BORDER-BOTTOM: #cfcfcf 1px dotted"></div>
<div   id="wvjspg3hwr"   class="clear10"></div>
<p><strong>一、主要用途：</strong>DLM9系列為無滑環式濕式多片電磁離合器，需在有潤滑的條件下工作，摩擦片損失小，使用壽命長。徑向尺寸小、力矩大、可廣泛用于機床、軋鋼、冶金采礦、金屬壓延、搬運、船舶漁業等設備的機械傳動系統中，起到離合、換向、變速等作用。<br/><br/><strong>二、工作條件：</strong>海拔高度不超過2000米；周?chē)諝鉁囟葹?5°C～+40°C；周?chē)橘|(zhì)中無爆炸危險且無足以腐蝕金屬和破壞絕緣的氣體及導電塵埃；離合器線圈的供電電壓波動不超過+5%和-15%的額定電壓；摩擦片間需要有潤滑油。<br/><br/><strong>三、安裝：</strong>離合器安裝前應清洗干凈；安裝是應軸向固定，如分軸安裝應保持同軸度為9級；離合器工作時應向摩擦片供油，在高速運轉和高頻工作時，應采取軸心供油法；離合器潤滑油應清潔，否則會影響其使用可靠性。<br/> </p>
<div   id="wvjspg3hwr"   class="clear20"></div><font class="zzi">DLM9系列主要性能參數Main Technical Data</font>
<div   id="wvjspg3hwr"   class="clear5" style="BORDER-BOTTOM: #cfcfcf 1px dotted"></div>
<div   id="wvjspg3hwr"   class="clear10"></div>
<table class="canshubiao" cellspacing="0" cellpadding="0" border="1">
<tbody>
<tr>
<td bgcolor="#ffffcc">產品 系列 series</td>
<td bgcolor="#ffffcc">規格 size</td>
<td bgcolor="#ffffcc">額定動力矩 N.m</td>
<td bgcolor="#ffffcc">額定靜力矩 N.m</td>
<td bgcolor="#ffffcc">空載力矩 (≤) N.m</td>
<td bgcolor="#ffffcc" width="45">接通時間 (≤) S</td>
<td bgcolor="#ffffcc" width="51">斷開時間 ( ≤ )S</td>
<td bgcolor="#ffffcc">額定電壓 DCV</td>
<td bgcolor="#ffffcc" width="72">線圈消耗功率 (20℃) W</td>
<td bgcolor="#ffffcc">允許最高轉速 r/min</td>
<td bgcolor="#ffffcc">重量 kg</td>
<td bgcolor="#ffffcc">供油流量 L/min</td></tr>
<tr>
<td bgcolor="#ffffcc" rowspan="10">DLM9</td>
<td bgcolor="#aad5ff">2</td>
<td bgcolor="#ccffcc">16</td>
<td bgcolor="#aad5ff">25</td>
<td bgcolor="#ccffcc">0.48</td>
<td bgcolor="#aad5ff" width="45">0.28</td>
<td bgcolor="#ccffcc" width="51">0.09</td>
<td bgcolor="#aad5ff">24</td>
<td bgcolor="#ccffcc" width="72">24</td>
<td bgcolor="#aad5ff">3000</td>
<td bgcolor="#ccffcc">2.9</td>
<td bgcolor="#aad5ff">0.25</td></tr>
<tr>
<td bgcolor="#aad5ff">5</td>
<td bgcolor="#ccffcc">50</td>
<td bgcolor="#aad5ff">80</td>
<td bgcolor="#ccffcc">0.85</td>
<td bgcolor="#aad5ff" width="45">0.30</td>
<td bgcolor="#ccffcc" width="51">0.10</td>
<td bgcolor="#aad5ff">24</td>
<td bgcolor="#ccffcc" width="72">37</td>
<td bgcolor="#aad5ff">3000</td>
<td bgcolor="#ccffcc">3.9</td>
<td bgcolor="#aad5ff">0.40</td></tr>
<tr>
<td bgcolor="#aad5ff">10</td>
<td bgcolor="#ccffcc">100</td>
<td bgcolor="#aad5ff">160</td>
<td bgcolor="#ccffcc">1.80</td>
<td bgcolor="#aad5ff" width="45">0.32</td>
<td bgcolor="#ccffcc" width="51">0.14</td>
<td bgcolor="#aad5ff">24</td>
<td bgcolor="#ccffcc" width="72">50</td>
<td bgcolor="#aad5ff">3000</td>
<td bgcolor="#ccffcc">5.9</td>
<td bgcolor="#aad5ff">0.65</td></tr>
<tr>
<td bgcolor="#aad5ff">16</td>
<td bgcolor="#ccffcc">160</td>
<td bgcolor="#aad5ff">250</td>
<td bgcolor="#ccffcc">2.40</td>
<td bgcolor="#aad5ff" width="45">0.36</td>
<td bgcolor="#ccffcc" width="51">0.16</td>
<td bgcolor="#aad5ff">24</td>
<td bgcolor="#ccffcc" width="72">56</td>
<td bgcolor="#aad5ff">2500</td>
<td bgcolor="#ccffcc">7.8</td>
<td bgcolor="#aad5ff">0.65</td></tr>
<tr>
<td bgcolor="#aad5ff">25</td>
<td bgcolor="#ccffcc">250</td>
<td bgcolor="#aad5ff">400</td>
<td bgcolor="#ccffcc">3.80</td>
<td bgcolor="#aad5ff" width="45">0.40</td>
<td bgcolor="#ccffcc" width="51">0.18</td>
<td bgcolor="#aad5ff">24</td>
<td bgcolor="#ccffcc" width="72">76</td>
<td bgcolor="#aad5ff">2200</td>
<td bgcolor="#ccffcc">10.7</td>
<td bgcolor="#aad5ff">1.00</td></tr>
<tr>
<td bgcolor="#aad5ff">40</td>
<td bgcolor="#ccffcc">400</td>
<td bgcolor="#aad5ff">630</td>
<td bgcolor="#ccffcc">6.00</td>
<td bgcolor="#aad5ff" width="45">0.60</td>
<td bgcolor="#ccffcc" width="51">0.22</td>
<td bgcolor="#aad5ff">24</td>
<td bgcolor="#ccffcc" width="72">86</td>
<td bgcolor="#aad5ff">2000</td>
<td bgcolor="#ccffcc">15</td>
<td bgcolor="#aad5ff">1.00</td></tr>
<tr>
<td bgcolor="#aad5ff">63</td>
<td bgcolor="#ccffcc">630</td>
<td bgcolor="#aad5ff">1000</td>
<td bgcolor="#ccffcc">9.50</td>
<td bgcolor="#aad5ff" width="45">0.70</td>
<td bgcolor="#ccffcc" width="51">0.26</td>
<td bgcolor="#aad5ff">24</td>
<td bgcolor="#ccffcc" width="72">88</td>
<td bgcolor="#aad5ff">1800</td>
<td bgcolor="#ccffcc">22</td>
<td bgcolor="#aad5ff">1.20</td></tr>
<tr>
<td bgcolor="#aad5ff">100</td>
<td bgcolor="#ccffcc">1000</td>
<td bgcolor="#aad5ff">1600</td>
<td bgcolor="#ccffcc">15.00</td>
<td bgcolor="#aad5ff" width="45">0.85</td>
<td bgcolor="#ccffcc" width="51">0.31</td>
<td bgcolor="#aad5ff">24</td>
<td bgcolor="#ccffcc" width="72">104</td>
<td bgcolor="#aad5ff">1600</td>
<td bgcolor="#ccffcc">33</td>
<td bgcolor="#aad5ff">1.20</td></tr>
<tr>
<td bgcolor="#aad5ff">160</td>
<td bgcolor="#ccffcc">1600</td>
<td bgcolor="#aad5ff">2500</td>
<td bgcolor="#ccffcc">24.00</td>
<td bgcolor="#aad5ff" width="45">1.20</td>
<td bgcolor="#ccffcc" width="51">0.43</td>
<td bgcolor="#aad5ff">24</td>
<td bgcolor="#ccffcc" width="72">122</td>
<td bgcolor="#aad5ff">1500</td>
<td bgcolor="#ccffcc">51</td>
<td bgcolor="#aad5ff">1.50</td></tr>
<tr>
<td bgcolor="#aad5ff">250</td>
<td bgcolor="#ccffcc">2500</td>
<td bgcolor="#aad5ff">4000</td>
<td bgcolor="#ccffcc">38.00</td>
<td bgcolor="#aad5ff" width="45">1.40</td>
<td bgcolor="#ccffcc" width="51">0.50</td>
<td bgcolor="#aad5ff">24</td>
<td bgcolor="#ccffcc" width="72">175.5</td>
<td bgcolor="#aad5ff">1200</td>
<td bgcolor="#ccffcc">67</td>
<td bgcolor="#aad5ff">2.00</td></tr></tbody></table></div>
<div   id="wvjspg3hwr"   class="clear20"></div><font class="zzi">安裝示意圖及總裝圖/Diagrammatic Sketch of
Installation：</font></div><p><font class="zzi"><br/></font></p>
<div><font class="zzi"><font class="zzi">DLM9系列主要性能參數Main Technical Data</font>
<div   id="wvjspg3hwr"   class="clear5" style="BORDER-BOTTOM: #cfcfcf 1px dotted"></div>
<div   id="wvjspg3hwr"   class="clear10"></div>
<table style="WIDTH: 480pt; BORDER-COLLAPSE: collapse" cellspacing="0" cellpadding="0" width="635" border="0" x:str="">
<colgroup>
<col style="WIDTH: 58pt; mso-width-source: userset; mso-width-alt: 2464" width="77">
<col style="WIDTH: 28pt; mso-width-source: userset; mso-width-alt: 1184" span="3" width="37">
<col style="WIDTH: 34pt; mso-width-source: userset; mso-width-alt: 1440" width="45">
<col style="WIDTH: 28pt; mso-width-source: userset; mso-width-alt: 1184" span="3" width="37">
<col style="WIDTH: 40pt; mso-width-source: userset; mso-width-alt: 1696" span="2" width="53">
<col style="WIDTH: 28pt; mso-width-source: userset; mso-width-alt: 1184" span="5" width="37"></colgroup>
<tbody>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl24" style="BORDER-TOP: black 0.5pt solid; HEIGHT: 28.5pt; BORDER-RIGHT: black 0.5pt solid; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; TEXT-ALIGN: center; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="38" rowspan="2" width="77">規格 size</td>
<td class="xl25" style="BORDER-TOP: black 0.5pt solid; BORDER-RIGHT: black 0.5pt solid; WIDTH: 282pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="373" colspan="9">徑向尺寸Radial Demensions</td>
<td class="xl25" style="BORDER-TOP: black 0.5pt solid; BORDER-RIGHT: black 0.5pt solid; WIDTH: 140pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="185" colspan="5">軸向尺寸Axial Demensions</td></tr>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl29" style="HEIGHT: 14.25pt; BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" height="19" width="37">D1</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="37">D2</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="37">D3</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="45">D4</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="37">Φ</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="37">e</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="37">h</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="53">J</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="53">K</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="37">L</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="37">L1</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="37">L2</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="37">s</td>
<td class="xl29" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ffffcc" width="37">t</td></tr>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl29" style="HEIGHT: 14.25pt; BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; TEXT-ALIGN: center; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="19" width="77" x:num="">2</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">95</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">80</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">35</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">50</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">20</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">6</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">22.8</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="53">2×φ6</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="53">4×M6</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">55</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">50</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">5</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">4</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td></tr>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl29" style="HEIGHT: 14.25pt; BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; TEXT-ALIGN: center; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="19" width="77" x:num="">5</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">110</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">90</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">45</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">65</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">30</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">33.3</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="53">3×φ6</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="53">4×M6</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">60</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">55</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">5</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">4</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td></tr>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl29" style="HEIGHT: 14.25pt; BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; TEXT-ALIGN: center; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="19" width="77" x:num="">10</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">132</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">105</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">50</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">75</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">40</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">12</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">42.3</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="53">3×φ6</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="53">6×M8</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">67</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">60</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">7</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">5</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">10</td></tr>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl29" style="HEIGHT: 14.25pt; BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; TEXT-ALIGN: center; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="19" width="77" x:num="">16</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">147</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">120</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">55</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">85</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">45</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">14</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">47.4</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="53">3×φ8</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="53">6×M8</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">72</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">65</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">7</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">5</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">10</td></tr>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl29" style="HEIGHT: 14.25pt; BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; TEXT-ALIGN: center; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="19" width="77" x:num="">25</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">162</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">135</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">65</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">95</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">50</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">16</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">53.6</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="53">3×φ8</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="53">6×M8</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">82</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">75</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">7</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">6</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">12</td></tr>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl29" style="HEIGHT: 14.25pt; BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; TEXT-ALIGN: center; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="19" width="77" x:num="">40</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">182</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">155</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">75</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">120</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">60</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">18</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">64.4</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="53">3×φ10</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="53">6×M10</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">93</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">85</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">8</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">6</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">12</td></tr>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl29" style="HEIGHT: 14.25pt; BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; TEXT-ALIGN: center; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="19" width="77" x:num="">63</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">202</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">170</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">85</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">125</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">70</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">20</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">74.3</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="53">3×φ10</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="53">6×M10</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">109</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">100</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">9</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">8</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">14</td></tr>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl29" style="HEIGHT: 14.25pt; BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; TEXT-ALIGN: center; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="19" width="77" x:num="">100</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">235</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">200</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">100</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">150</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">70</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">20</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">74.9</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="53">3×φ14</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="53">6×M12</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">120</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">110</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">10</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">8</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">14</td></tr>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl29" style="HEIGHT: 14.25pt; BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; TEXT-ALIGN: center; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="19" width="77" x:num="">160</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">270</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">235</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">110</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">200</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">90</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">25</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">95.4</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="53">3×φ14</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="53">6×M12</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">142</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">130</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">12</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">10</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">16</td></tr>
<tr style="HEIGHT: 14.25pt" height="19">
<td class="xl29" style="HEIGHT: 14.25pt; BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 58pt; BORDER-BOTTOM: black 0.5pt solid; TEXT-ALIGN: center; BORDER-LEFT: black 0.5pt solid; BACKGROUND-COLOR: #ffffcc" height="19" width="77" x:num="">250</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">310</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">260</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">140</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 34pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="45" x:num="">220</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">110</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">28</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="116.4">116</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="53">3×φ16</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 40pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="53">6×M16</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">157</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">145</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">14</td>
<td class="xl30" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #99ccff" width="37" x:num="">10</td>
<td class="xl31" style="BORDER-RIGHT: black 0.5pt solid; BORDER-TOP-COLOR: black; WIDTH: 28pt; BORDER-BOTTOM: black 0.5pt solid; BORDER-LEFT-COLOR: black; TEXT-ALIGN: center; BACKGROUND-COLOR: #ccffcc" width="37" x:num="">16</td></tr></tbody></table></font></div>

亚洲色欲或者高潮影院|欧美激情精品久久久久|欧洲美妇乱人伦视频网站|亚洲日韩成人AV无码网站|欧美精品一区二区三区中文|99精品国产乱码在线观看|国产精品毛片久久久久久无码|精品视频一区二区三区中文字幕

相關分類

同類其它品牌

小東推薦

DLM9系列無滑環濕式多片電磁離合器

商品詳情

商品評論

商品咨詢

您看過的商品

正品保障品類齊全

多倉直發 貨期保證

專業客服答疑解惑

陽光采購 一站服務

關于新諾德

相關分類

同類其它品牌

小東推薦

DLM9系列 無滑環濕式多片電磁離合器

您看過的商品

DLM9系列無滑環濕式多片電磁離合器
