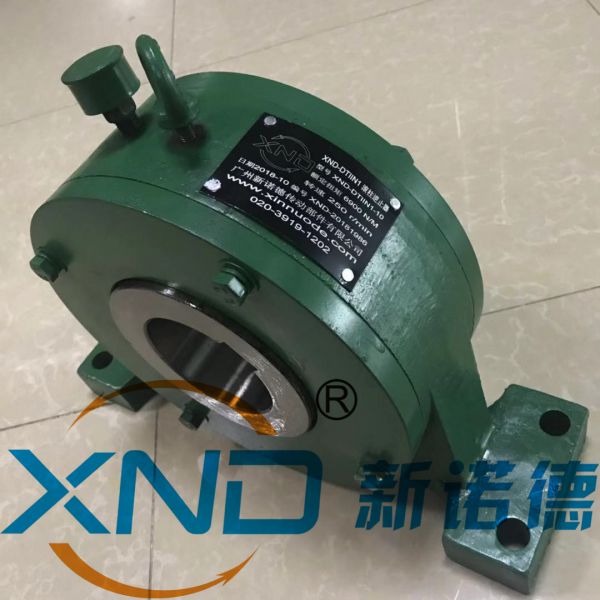

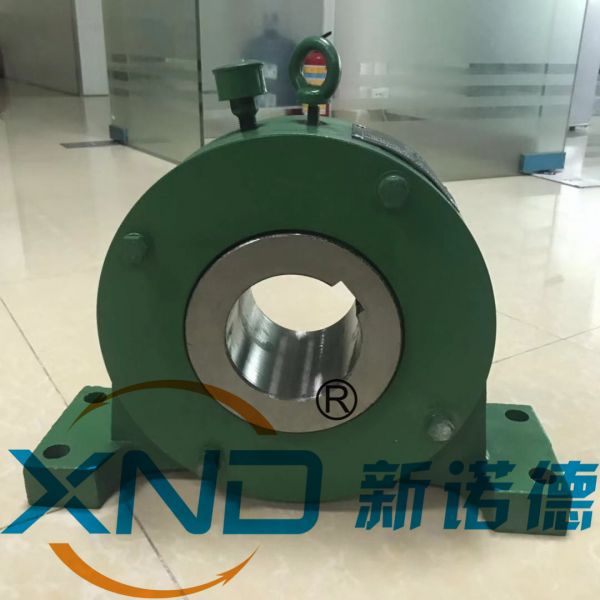

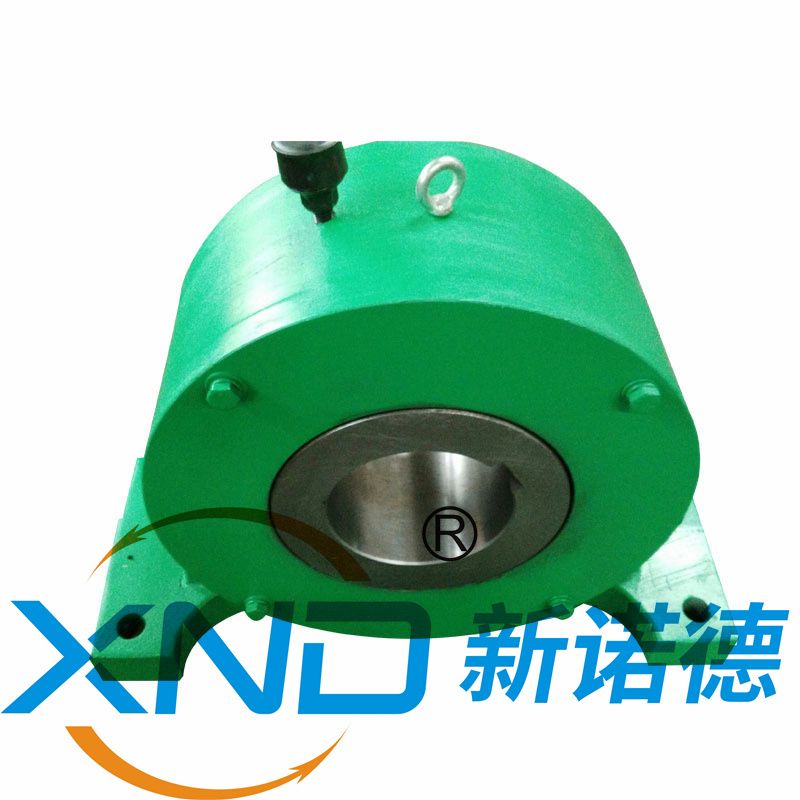

GN型滾柱式逆止器

型號： P5F48FFFFE5A65
品牌： XND-新諾德

銷售價：
會員價： 最低起 更多會員價
市場價：
商品評分： (共0人評論)

數量： -+
我要詢價

商品詳情

品牌：XND-新諾德
所屬分類：滾柱式逆止器
商品編號：G5F48FFFFE5A1E

<div style="text-align: center;"><font color="#ff0000" face="Times New Roman" size="7"><strong style="">XND-GN型 滾柱式低速逆止器</strong></font></div><div style="text-align: center;">

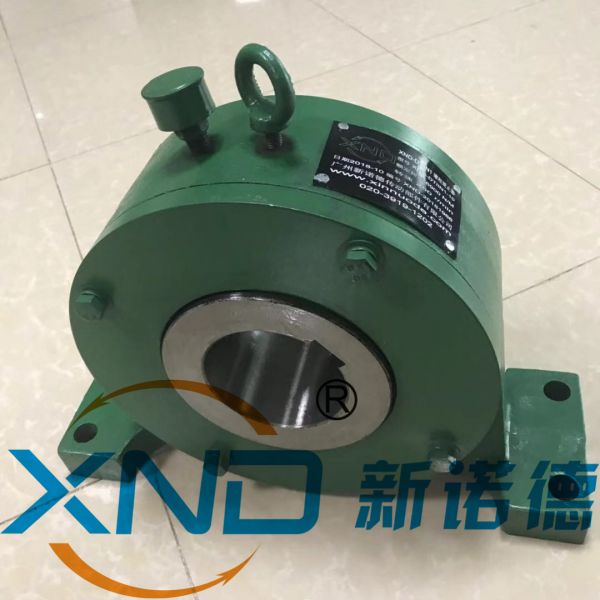

<img src="http://xinnuode.com/public/images/26/3e/df/ee60ca325a7601c7f602dfea2f1b62a9b15f02b8.jpg?1598619557#h"></div><div style="text-align: center;"><font size="4">GN型滾柱式逆止器常與減速機配套，用于帶式輸送機、提升機、電動滾筒及其他需要逆止的機械設備。其優點是逆止迅速、倒轉距離小，是大中型傾角式輸送機的首選逆止器。</font></div><div style="text-align: center;">
<img src="http://www.sexcamscout.com/public/images/cb/7f/77/c7c64cd8881305736ae3d8ab0e95775228a3e48d.jpg?1743319805#h"></div><div style="text-align: center;"><br/></div><div><table cellspacing="0" cellpadding="0" width="533" border="0" style="text-align: center;"><tbody><tr><td width="281">
<p class="hei1_9">GN 型滾柱式逆止器基本參數及主要尺寸 </p>
</td>
<td class="bai_10" width="269">
<p>單位： mm </p>
</td></tr></tbody></table><div style="text-align: center;"><br/></div></div><div><table cellspacing="0" width="533" align="center" style="text-align: center;"><tbody><tr class="tb_line4" bgcolor="#ff7f00">
<td class="tb_line4" bgcolor="#ff7f00" width="42">型號</td>
<td class="tb_line4" bgcolor="#ff7f00" width="90">最大逆止 轉矩<br/>(N·m)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="27">d<br/>(H7)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="27">b<br/>(H8)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="35">T<br/>(H8)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="23">C</td>
<td class="tb_line4" bgcolor="#ff7f00" width="23">L</td>
<td class="tb_line4" bgcolor="#ff7f00" width="23">B</td>
<td class="tb_line4" bgcolor="#ff7f00" width="23">C1</td>
<td class="tb_line4" bgcolor="#ff7f00" width="23">B1</td>
<td class="tb_line4" bgcolor="#ff7f00" width="23">H</td>
<td class="tb_line4" bgcolor="#ff7f00" width="31">H1</td>
<td class="tb_line4" bgcolor="#ff7f00" width="22">d1</td>
<td class="tb_line4" width="35">質量<br/>(kg)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="74">配用減速機</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">GN110</td>
<td class="tb_line" height="22">6900</td>
<td class="tb_line" height="22">110</td>
<td class="tb_line" height="22">28</td>
<td class="tb_line" height="22">116.4</td>
<td class="tb_line" height="22">300</td>
<td class="tb_line" height="22">460</td>
<td class="tb_line" height="22">140</td>
<td class="tb_line" height="22">90</td>
<td class="tb_line" height="22">140</td>
<td class="tb_line" height="22">320</td>
<td class="tb_line" height="22">470</td>
<td class="tb_line" height="22">22</td>
<td class="tb_line" height="22">104</td>
<td class="tb_2" height="22">ZQ65/ZQ75</td></tr>
<tr>
<td class="tb_line" height="22">GN130</td>
<td class="tb_line" height="22">13900</td>
<td class="tb_line" height="22">130</td>
<td class="tb_line" height="22">32</td>
<td class="tb_line" height="22">137.4</td>
<td class="tb_line" height="22">330</td>
<td class="tb_line" height="22">490</td>
<td class="tb_line" height="22">170</td>
<td class="tb_line" height="22">120</td>
<td class="tb_line" height="22">180</td>
<td class="tb_line" height="22">400</td>
<td class="tb_line" height="22">565</td>
<td class="tb_line" height="22">22</td>
<td class="tb_line" height="22">147</td>
<td class="tb_2" height="22">ZQ85</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">GN140</td>
<td class="tb_line" height="22">13900</td>
<td class="tb_line" height="22">140</td>
<td class="tb_line" height="22">36</td>
<td class="tb_line" height="22">148.4</td>
<td class="tb_line" height="22">330</td>
<td class="tb_line" height="22">500</td>
<td class="tb_line" height="22">170</td>
<td class="tb_line" height="22">120</td>
<td class="tb_line" height="22">190</td>
<td class="tb_line" height="22">550</td>
<td class="tb_line" height="22">715</td>
<td class="tb_line" height="22">22</td>
<td class="tb_line" height="22">172</td>
<td class="tb_2" height="22">ZL85</td></tr>
<tr>
<td class="tb_line" height="22">GN150</td>
<td class="tb_line" height="22">23300</td>
<td class="tb_line" height="22">150</td>
<td class="tb_line" height="22">36</td>
<td class="tb_line" height="22">158.4</td>
<td class="tb_line" height="22">410</td>
<td class="tb_line" height="22">590</td>
<td class="tb_line" height="22">190</td>
<td class="tb_line" height="22">170</td>
<td class="tb_line" height="22">230</td>
<td class="tb_line" height="22">400</td>
<td class="tb_line" height="22">605</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">206</td>
<td class="tb_2" height="22">ZQ100</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">GN170</td>
<td class="tb_line" height="22">23300</td>
<td class="tb_line" height="22">170</td>
<td class="tb_line" height="22">40</td>
<td class="tb_line" height="22">179.4</td>
<td class="tb_line" height="22">510</td>
<td class="tb_line" height="22">590</td>
<td class="tb_line" height="22">190</td>
<td class="tb_line" height="22">170</td>
<td class="tb_line" height="22">250</td>
<td class="tb_line" height="22">650</td>
<td class="tb_line" height="22">855</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">246</td>
<td class="tb_2" height="22">ZL100</td></tr>
<tr>
<td class="tb_line" height="22">GN200</td>
<td class="tb_line" height="22">48500</td>
<td class="tb_line" height="22">200</td>
<td class="tb_line" height="22">45</td>
<td class="tb_line" height="22">210.4</td>
<td class="tb_line" height="22">590</td>
<td class="tb_line" height="22">670</td>
<td class="tb_line" height="22">220</td>
<td class="tb_line" height="22">210</td>
<td class="tb_line" height="22">290</td>
<td class="tb_line" height="22">750</td>
<td class="tb_line" height="22">1015</td>
<td class="tb_line" height="22">32</td>
<td class="tb_line" height="22">349</td>
<td class="tb_2" height="22">ZL115</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">GN220</td>
<td class="tb_line" height="22">48500</td>
<td class="tb_line" height="22">220</td>
<td class="tb_line" height="22">50</td>
<td class="tb_line" height="22">231.4</td>
<td class="tb_line" height="22">590</td>
<td class="tb_line" height="22">670</td>
<td class="tb_line" height="22">220</td>
<td class="tb_line" height="22">210</td>
<td class="tb_line" height="22">290</td>
<td class="tb_line" height="22">850</td>
<td class="tb_line" height="22">1115</td>
<td class="tb_line" height="22">32</td>
<td class="tb_line" height="22">348</td>
<td class="tb_2" height="22">ZL130</td></tr>
<tr bgcolor="#ffffff">
<td class="hei1_9" colspan="15">◆注:鍵槽尺寸及公差按GB1095-79標準執行.如需特殊要求請在合同上注明.</td></tr></tbody></table><div style="text-align: center;">
<img src="http://xinnuode.com/public/images/a8/25/9b/e99b4bc516bda19d0fbec5bd965314f471a12407.jpg?1662381615#h"></div></div>
