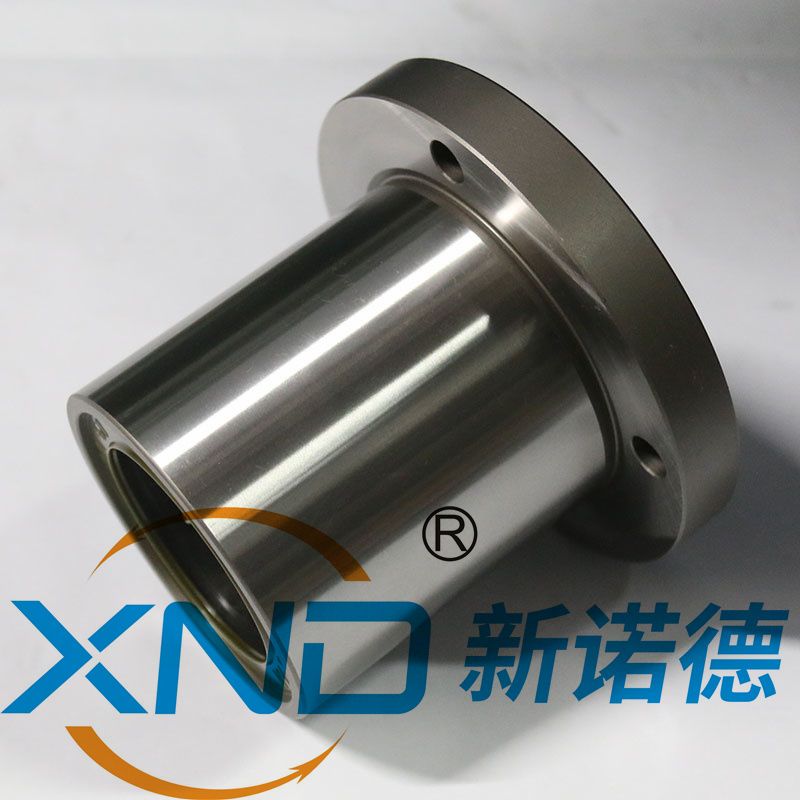

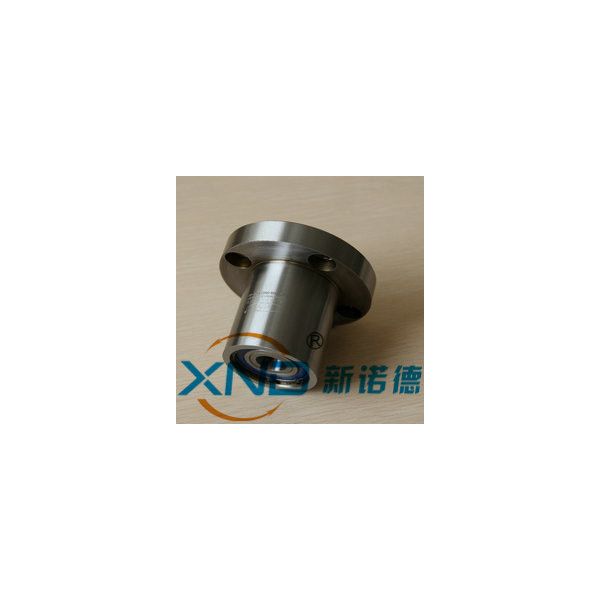

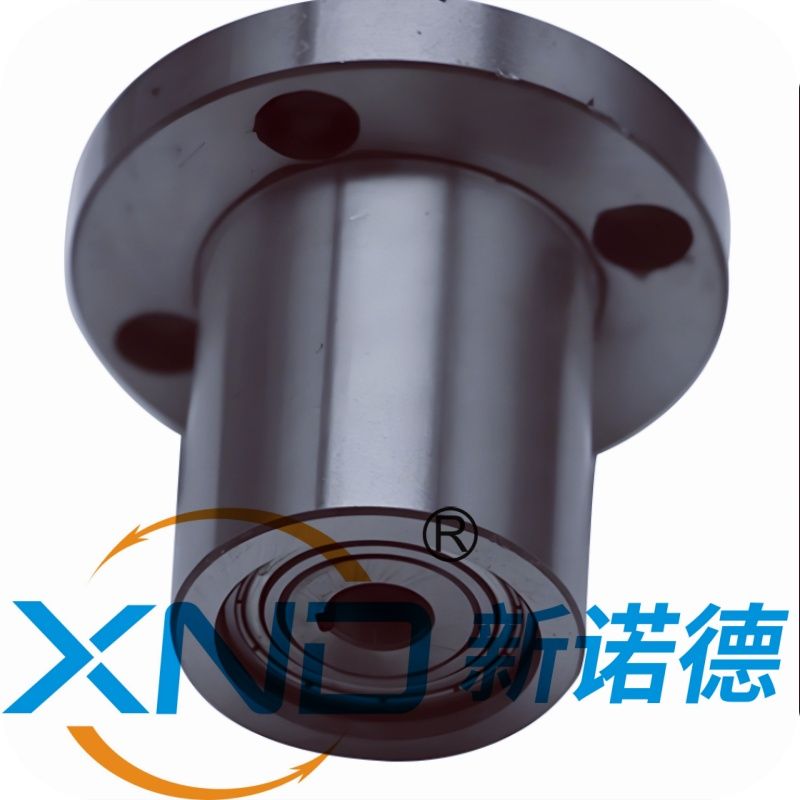

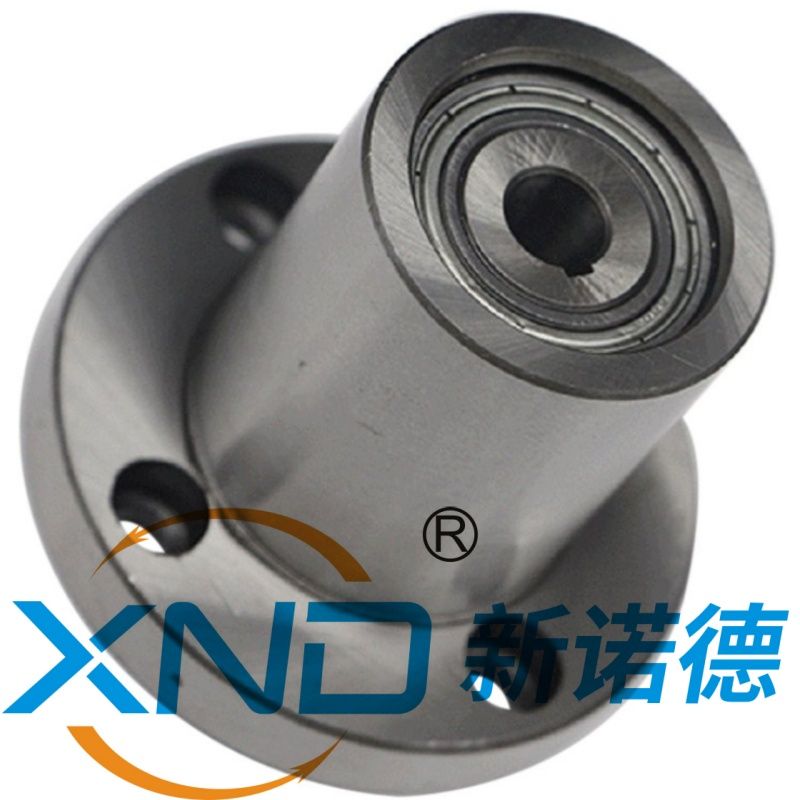

CKS型雙向逆止器

型號： P5F48FC030482C
品牌： XND-新諾德

銷售價：
會員價： 最低起 更多會員價
市場價：
商品評分： (共0人評論)

數量： -+
我要詢價

商品詳情

品牌：XND-新諾德
所屬分類：雙向離合器-雙向逆止器
商品編號：G5F48FC03047E9

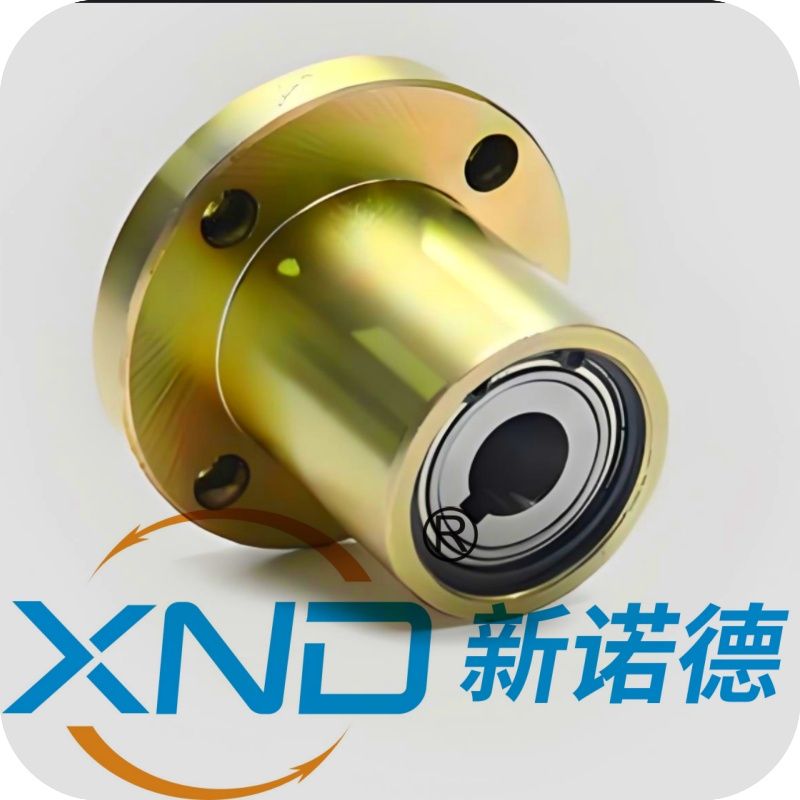

<div style="text-align: center;"><font color="#ff0000" face="Times New Roman" size="7"><strong>XND-CKS型 雙向逆止器</strong></font></div><div style="text-align: center;">
<img src="http://www.sexcamscout.com/public/images/f1/5f/b4/417c77a3969d0c558332eb57a8e192e9ec837b42.jpg?1743318990#h"></div><div style="text-align: left;"><font size="4">        CKS
型雙向楔塊超越離合器，它一端軸孔接主動軸，另一端軸孔接從動軸，當外環不動，主動軸順時針或逆時針轉動時，從動軸也同步轉動，而當從動軸受外力矩的作用時，順時針和逆時針都不能轉動。常與滾珠絲杠副或其它部件配套，作為防止逆轉機構，也可以單獨使用作為精確定位，傳遞力矩或切斷力矩的傳遞。用于印刷機械、包裝機械、起重運輸機械、各種非標設備和實驗臺的機械傳動中。</font></div><div style="text-align: center;">
<img src="http://www.sexcamscout.com/public/images/c4/60/a2/878354d5f3bed1fdab2a0aacc64f7a89eb3e0459.jpg?1743319088#h"></div><div><table height="30" cellspacing="0" cellpadding="0" width="533" border="0" style="text-align: center;">
<tbody>
<tr>
<td class="hei1_9" height="6"></td>
<td class="bai_10" height="6"></td></tr>
<tr>
<td class="hei1_9" height="15" width="316">
<p class="hei1_9" align="center">CKS 雙向超越離合器基本參數和主要尺寸( A 型) </p>
</td>
<td class="bai_10" width="235">
<p>長度單位： mm </p>
</td></tr></tbody></table>
<table cellspacing="0" cellpadding="0" width="533" border="0" style="text-align: center;">
<tbody>
<tr class="tb_line4">
<td class="tb_line4" bgcolor="#ff7f00" rowspan="3" width="22">序<br/>號</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="3" width="122">型 號</td>
<td class="tb_line4" bgcolor="#ff7f00" colspan="12">安 裝 尺 寸</td>
<td bgcolor="#ff7f00" rowspan="3" width="41">公稱<br/>轉距<br/>Tn<br/>(N·m)</td></tr>
<tr>
<td class="tb_line4" bgcolor="#ff7f00" colspan="6">離合器</td>
<td class="tb_line4" bgcolor="#ff7f00" colspan="6">殼 體</td></tr>
<tr>
<td class="tb_line4" bgcolor="#ff7f00" width="26">d</td>
<td class="tb_line4" bgcolor="#ff7f00" width="27">D</td>
<td class="tb_line4" bgcolor="#ff7f00" width="27">T</td>
<td class="tb_line4" bgcolor="#ff7f00" width="32">C</td>
<td class="tb_line4" bgcolor="#ff7f00" width="27">b1</td>
<td class="tb_line4" bgcolor="#ff7f00" width="33">t1</td>
<td class="tb_line4" bgcolor="#ff7f00" width="30">D1</td>
<td class="tb_line4" bgcolor="#ff7f00" width="34">D2</td>
<td class="tb_line4" bgcolor="#ff7f00" width="34">D3</td>
<td class="tb_line4" bgcolor="#ff7f00" width="34">H</td>
<td class="tb_line4" bgcolor="#ff7f00" width="31">h</td>
<td class="tb_line4" bgcolor="#ff7f00" width="33">d1</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">1</td>
<td class="tb_line" height="22">CKS70(42)×58-10</td>
<td class="tb_line5" height="22">10</td>
<td class="tb_line5" height="22">32</td>
<td class="tb_line5" height="22">51</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">3</td>
<td class="tb_line" height="22">1.4</td>
<td class="tb_line5" height="22">70</td>
<td class="tb_line5" height="22">55</td>
<td class="tb_line5" height="22">42</td>
<td class="tb_line5" height="22">58</td>
<td class="tb_line5" height="22">11</td>
<td class="tb_line" height="22">6.5</td>
<td class="tb_2" height="22">20</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">2</td>
<td class="tb_line" height="22">CKS75(45)×58-10</td>
<td class="tb_line5" height="22">10</td>
<td class="tb_line5" height="22">35</td>
<td class="tb_line5" height="22">52</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">3</td>
<td class="tb_line" height="22">1.4</td>
<td class="tb_line5" height="22">75</td>
<td class="tb_line5" height="22">60</td>
<td class="tb_line5" height="22">45</td>
<td class="tb_line5" height="22">58</td>
<td class="tb_line5" height="22">11</td>
<td class="tb_line" height="22">6.5</td>
<td class="tb_2" height="22">20</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">3</td>
<td class="tb_line" height="22">CKS75(45)×58-12</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line5" height="22">35</td>
<td class="tb_line5" height="22">51</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">4</td>
<td class="tb_line" height="22">1.8</td>
<td class="tb_line5" height="22">75</td>
<td class="tb_line5" height="22">60</td>
<td class="tb_line5" height="22">45</td>
<td class="tb_line5" height="22">58</td>
<td class="tb_line5" height="22">11</td>
<td class="tb_line" height="22">6.5</td>
<td class="tb_2" height="22">20</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">4</td>
<td class="tb_line" height="22">CKS75(45)×58-15</td>
<td class="tb_line5" height="22">15</td>
<td class="tb_line5" height="22">35</td>
<td class="tb_line5" height="22">51</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">3</td>
<td class="tb_line" height="22">1.4</td>
<td class="tb_line5" height="22">75</td>
<td class="tb_line5" height="22">60</td>
<td class="tb_line5" height="22">45</td>
<td class="tb_line5" height="22">58</td>
<td class="tb_line5" height="22">11</td>
<td class="tb_line" height="22">6.5</td>
<td class="tb_2" height="22">20</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">5</td>
<td class="tb_line" height="22">CKS95(57)×78-17</td>
<td class="tb_line5" height="22">17</td>
<td class="tb_line5" height="22">47</td>
<td class="tb_line5" height="22">70</td>
<td class="tb_line5" height="22">27</td>
<td class="tb_line5" height="22">5</td>
<td class="tb_line" height="22">2.3</td>
<td class="tb_line5" height="22">95</td>
<td class="tb_line5" height="22">75</td>
<td class="tb_line5" height="22">57</td>
<td class="tb_line5" height="22">78</td>
<td class="tb_line5" height="22">13</td>
<td class="tb_line" height="22">8.5</td>
<td class="tb_2" height="22">50</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">6</td>
<td class="tb_line" height="22">CKS105(62)×78-20</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">52</td>
<td class="tb_line5" height="22">70</td>
<td class="tb_line5" height="22">27</td>
<td class="tb_line5" height="22">6</td>
<td class="tb_line" height="22">2.8</td>
<td class="tb_line5" height="22">105</td>
<td class="tb_line5" height="22">84</td>
<td class="tb_line5" height="22">62</td>
<td class="tb_line5" height="22">78</td>
<td class="tb_line5" height="22">16</td>
<td class="tb_line" height="22">10.5</td>
<td class="tb_2" height="22">100</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">7</td>
<td class="tb_line" height="22">CKS115(74)×78-20</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">62</td>
<td class="tb_line5" height="22">70</td>
<td class="tb_line5" height="22">27</td>
<td class="tb_line5" height="22">6</td>
<td class="tb_line" height="22">2.8</td>
<td class="tb_line5" height="22">115</td>
<td class="tb_line5" height="22">95</td>
<td class="tb_line5" height="22">74</td>
<td class="tb_line5" height="22">78</td>
<td class="tb_line5" height="22">16</td>
<td class="tb_line" height="22">10.5</td>
<td class="tb_2" height="22">100</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">8</td>
<td class="tb_line" height="22">CKS115(74)×88-25</td>
<td class="tb_line5" height="22">25</td>
<td class="tb_line5" height="22">62</td>
<td class="tb_line5" height="22">80</td>
<td class="tb_line5" height="22">32</td>
<td class="tb_line5" height="22">8</td>
<td class="tb_line" height="22">3.3</td>
<td class="tb_line5" height="22">115</td>
<td class="tb_line5" height="22">95</td>
<td class="tb_line5" height="22">74</td>
<td class="tb_line5" height="22">88</td>
<td class="tb_line5" height="22">16</td>
<td class="tb_line" height="22">10.5</td>
<td class="tb_2" height="22">120</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">9</td>
<td class="tb_line" height="22">CKS132(88)×100-30</td>
<td class="tb_line5" height="22">30</td>
<td class="tb_line5" height="22">75</td>
<td class="tb_line5" height="22">90</td>
<td class="tb_line5" height="22">35</td>
<td class="tb_line5" height="22">8</td>
<td class="tb_line" height="22">3.3</td>
<td class="tb_line5" height="22">132</td>
<td class="tb_line5" height="22">110</td>
<td class="tb_line5" height="22">84</td>
<td class="tb_line5" height="22">100</td>
<td class="tb_line5" height="22">16</td>
<td class="tb_line" height="22">10.5</td>
<td class="tb_2" height="22">150</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">10</td>
<td class="tb_line" height="22">CKS145(94)×110-35</td>
<td class="tb_line5" height="22">35</td>
<td class="tb_line5" height="22">80</td>
<td class="tb_line5" height="22">100</td>
<td class="tb_line5" height="22">40</td>
<td class="tb_line5" height="22">10</td>
<td class="tb_line" height="22">3.3</td>
<td class="tb_line5" height="22">145</td>
<td class="tb_line5" height="22">120</td>
<td class="tb_line5" height="22">94</td>
<td class="tb_line5" height="22">110</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line" height="22">13</td>
<td class="tb_2" height="22">200</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">11</td>
<td class="tb_line" height="22">CKS155(108)×110-40</td>
<td class="tb_line5" height="22">40</td>
<td class="tb_line5" height="22">90</td>
<td class="tb_line5" height="22">100</td>
<td class="tb_line5" height="22">40</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line" height="22">3.3</td>
<td class="tb_line5" height="22">155</td>
<td class="tb_line5" height="22">130</td>
<td class="tb_line5" height="22">108</td>
<td class="tb_line5" height="22">110</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line" height="22">13</td>
<td class="tb_2" height="22">250</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">CKS160(110)×120-45</td>
<td class="tb_line5" height="22">45</td>
<td class="tb_line5" height="22">90</td>
<td class="tb_line5" height="22">110</td>
<td class="tb_line5" height="22">45</td>
<td class="tb_line5" height="22">14</td>
<td class="tb_line" height="22">3.8</td>
<td class="tb_line5" height="22">160</td>
<td class="tb_line5" height="22">134</td>
<td class="tb_line5" height="22">110</td>
<td class="tb_line5" height="22">120</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line" height="22">13</td>
<td class="tb_2" height="22">300</td></tr>
<tr class="tb_line" bgcolor="#ffffff">
<td class="hei1_9" colspan="15">
<p class="hei1_9" align="right">◆注：( 殼體也可根據用戶要求確定其形狀和尺寸 ) </p>
</td></tr></tbody></table></div>
