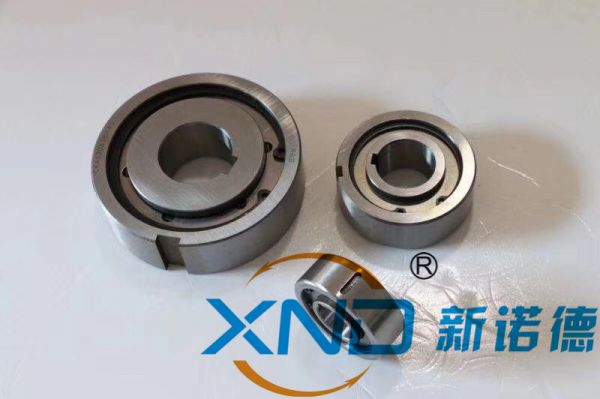

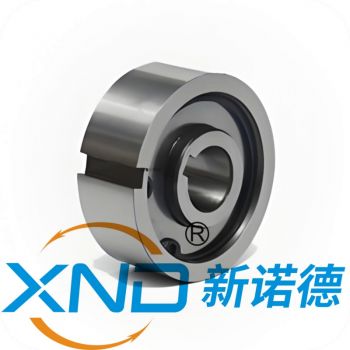

CGA型滾柱式單向超越離合器

型號： P5F48FB6BE1F08
品牌： XND-新諾德

銷售價：
會員價： 最低起 更多會員價
市場價：
商品評分： (共0人評論)

數量： -+
我要詢價

商品詳情

品牌：XND-新諾德
所屬分類：滾柱式單向離合器
商品編號：G5F48FB6BE1EC4

<div style="text-align: center;"><font color="#ff0000" face="Times New Roman" size="7"><strong>XND-CGA型 滾柱式單向超越離合器</strong></font></div><div style="text-align: center;">
<img src="http://www.sexcamscout.com/public/images/bf/ea/34/92257542556a633a6b704d690603af0cdbf4712a.jpg?1743318877#h"></div><div style="text-align: left;"><span id="wvjspg3hwr"    class="hei1_10"><font size="4">         CGA
型滾柱式單向超越離合器系無軸承支撐，使用時需配合軸承安裝，以防止軸向力和徑向力。常用于包裝機械、印刷機械、食品機械、機床和紡織機械等機械傳動中。</font></span></div><div style="text-align: center;"><span id="wvjspg3hwr"    class="hei1_10">
<img src="http://xinnuode.com/public/images/7f/ca/7a/65ff09acba4fa9a45a90a5350ff813b26bc1779e.png?1672387537#w"></span></div><div><span id="wvjspg3hwr"    class="hei1_10"><table class="tb_2" cellspacing="0" cellpadding="0" width="541" border="0" style="text-align: center;"><tbody><tr bgcolor="#ffffff">
<td class="hei1_9" bgcolor="#ffffff" colspan="7"><span id="wvjspg3hwr"    class="hei1_9">CGA型滾柱式單向超越離合器</span></td>
<td class="bai_10" bgcolor="#ffffff" colspan="3"><span id="wvjspg3hwr"    class="bai_10">長度單位：
mm</span></td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" rowspan="2" width="23">序<br/>號</td>
<td class="tb_line4" rowspan="2" width="127">型 號</td>
<td class="tb_line2" height="20">公稱<br/>轉矩</td>
<td class="tb_line2">超越時的<br/>極限轉速</td>
<td class="tb_line4" height="20" colspan="3">外環 </td>
<td class="tb_line4" bgcolor="#ff7f00" colspan="3">內環</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" bgcolor="#ff7f00">Tn<br/>(N·m)</td>
<td class="tb_line4" bgcolor="#ff7f00">n<br/>(r/min)</td>
<td class="tb_line4" width="37">D<br/>(h7)</td>
<td class="tb_line4" width="72">鍵槽<br/>(b×t )</td>
<td class="tb_line4" width="34">L</td>
<td class="tb_line4" bgcolor="#ff7f00" width="30">d<br/>(H7)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="88">鍵槽<br/>(b1×t1 )</td>
<td class="tb_line4" bgcolor="#ff7f00" width="42">L1</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">1</td>
<td class="tb_line" height="22">CGA37×20-12</td>
<td class="tb_line" height="22">3</td>
<td class="tb_line" height="22">1500</td>
<td class="tb_line5" height="22">37</td>
<td class="tb_line5" height="22">4×2.5</td>
<td class="tb_line" height="22">20</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line5" height="22">4×1.8</td>
<td class="tb_2" height="22">20</td></tr>
<tr>
<td class="tb_line" height="22">2</td>
<td class="tb_line" height="22">CGA50×25-15</td>
<td class="tb_line" height="22">5</td>
<td class="tb_line" height="22">1200</td>
<td class="tb_line5" height="22">50</td>
<td class="tb_line5" height="22">5×3.0</td>
<td class="tb_line" height="22">25</td>
<td class="tb_line5" height="22">15</td>
<td class="tb_line5" height="22">5×2.3</td>
<td class="tb_2" height="22">25</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">3</td>
<td class="tb_line" height="22">CGA60×26-20</td>
<td class="tb_line" height="22">7</td>
<td class="tb_line" height="22">1100</td>
<td class="tb_line5" height="22">60</td>
<td class="tb_line5" height="22">5×3.0</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">5×2.8</td>
<td class="tb_2" height="22">26</td></tr>
<tr>
<td class="tb_line" height="22">4</td>
<td class="tb_line" height="22">CGA75×30-25</td>
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">1000</td>
<td class="tb_line5" height="22">75</td>
<td class="tb_line5" height="22">5×3.5</td>
<td class="tb_line" height="22">30</td>
<td class="tb_line5" height="22">25</td>
<td class="tb_line5" height="22">6×3.3</td>
<td class="tb_2" height="22">30</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">5</td>
<td class="tb_line" height="22">CGA80×37-25</td>
<td class="tb_line" height="22">25</td>
<td class="tb_line" height="22">900</td>
<td class="tb_line5" height="22">80</td>
<td class="tb_line5" height="22">6×3.5</td>
<td class="tb_line" height="22">37</td>
<td class="tb_line5" height="22">25</td>
<td class="tb_line5" height="22">6×3.3</td>
<td class="tb_2" height="22">37</td></tr>
<tr>
<td class="tb_line" height="22">6</td>
<td class="tb_line" height="22">CGA90×42-30</td>
<td class="tb_line" height="22">40</td>
<td class="tb_line" height="22">850</td>
<td class="tb_line5" height="22">90</td>
<td class="tb_line5" height="22">8×3.5</td>
<td class="tb_line" height="22">42</td>
<td class="tb_line5" height="22">30</td>
<td class="tb_line5" height="22">8×3.3</td>
<td class="tb_2" height="22">42</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">7</td>
<td class="tb_line" height="22">CGA100×48-40</td>
<td class="tb_line" height="22">65</td>
<td class="tb_line" height="22">750</td>
<td class="tb_line5" height="22">100</td>
<td class="tb_line5" height="22">10×3.5</td>
<td class="tb_line" height="22">48</td>
<td class="tb_line5" height="22">40</td>
<td class="tb_line5" height="22">12×3.3</td>
<td class="tb_2" height="22">48</td></tr>
<tr>
<td class="tb_line" height="22">8</td>
<td class="tb_line" height="22">CGA110×56-40</td>
<td class="tb_line" height="22">80</td>
<td class="tb_line" height="22">650</td>
<td class="tb_line5" height="22">110</td>
<td class="tb_line5" height="22">10×3.5</td>
<td class="tb_line" height="22">56</td>
<td class="tb_line5" height="22">40</td>
<td class="tb_line5" height="22">12×3.3</td>
<td class="tb_2" height="22">56</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">9</td>
<td class="tb_line" height="22">CGA120×58-50</td>
<td class="tb_line" height="22">120</td>
<td class="tb_line" height="22">550</td>
<td class="tb_line5" height="22">120</td>
<td class="tb_line5" height="22">12×4.0</td>
<td class="tb_line" height="22">58</td>
<td class="tb_line5" height="22">50</td>
<td class="tb_line5" height="22">12×3.8</td>
<td class="tb_2" height="22">58</td></tr>
<tr>
<td class="tb_line" height="22">10</td>
<td class="tb_line" height="22">CGA130×63-50</td>
<td class="tb_line" height="22">145</td>
<td class="tb_line" height="22">500</td>
<td class="tb_line5" height="22">130</td>
<td class="tb_line5" height="22">12×4.0</td>
<td class="tb_line" height="22">63</td>
<td class="tb_line5" height="22">50</td>
<td class="tb_line5" height="22">12×3.8</td>
<td class="tb_2" height="22">63</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">11</td>
<td class="tb_line" height="22">CGA140×65-60</td>
<td class="tb_line" height="22">200</td>
<td class="tb_line" height="22">420</td>
<td class="tb_line5" height="22">140</td>
<td class="tb_line5" height="22">12×4.0</td>
<td class="tb_line" height="22">65</td>
<td class="tb_line5" height="22">60</td>
<td class="tb_line5" height="22">12×3.8</td>
<td class="tb_2" height="22">65</td></tr>
<tr>
<td class="tb_line" height="22">12</td>
<td class="tb_line" height="22">CGA150×78-60</td>
<td class="tb_line" height="22">230</td>
<td class="tb_line" height="22">400</td>
<td class="tb_line5" height="22">150</td>
<td class="tb_line5" height="22">14×4.4</td>
<td class="tb_line" height="22">78</td>
<td class="tb_line5" height="22">60</td>
<td class="tb_line5" height="22">14×4.0</td>
<td class="tb_2" height="22">78</td></tr>
<tr bgcolor="#bdbec0">
<td class="tb_line" height="22">13</td>
<td class="tb_line" height="22">CGA170×80-70</td>
<td class="tb_line" height="22">250</td>
<td class="tb_line" height="22">370</td>
<td class="tb_line5" height="22">170</td>
<td class="tb_line5" height="22">14×5.5</td>
<td class="tb_line" height="22">80</td>
<td class="tb_line5" height="22">70</td>
<td class="tb_line5" height="22">14×4.0</td>
<td class="tb_2" height="22">80</td></tr></tbody></table></span></div>
