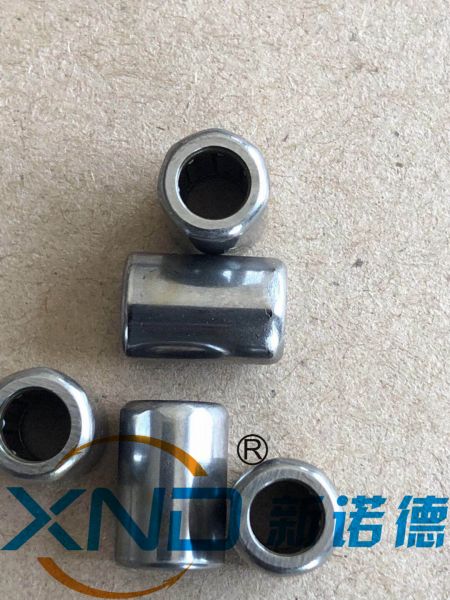

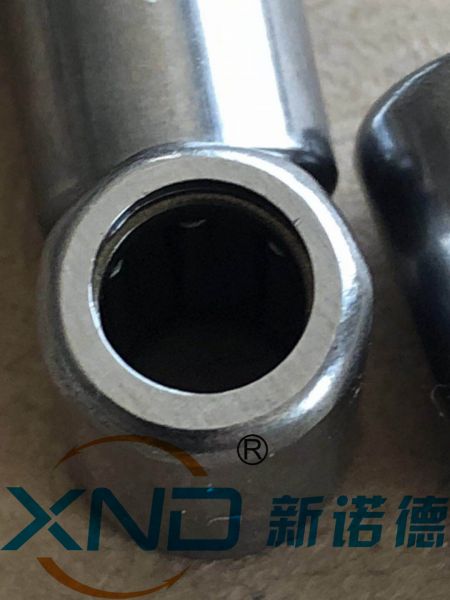

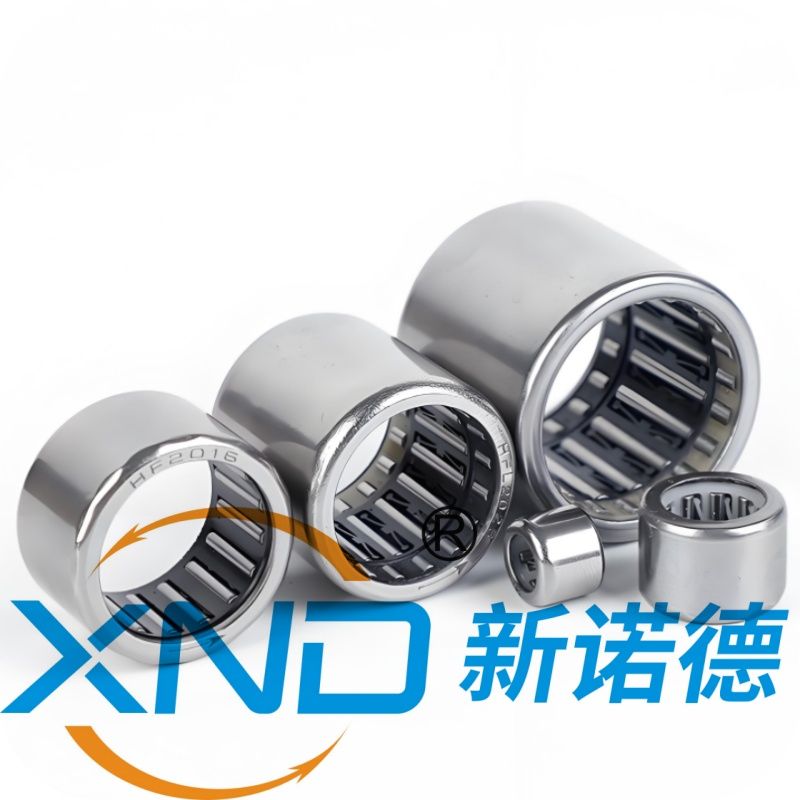

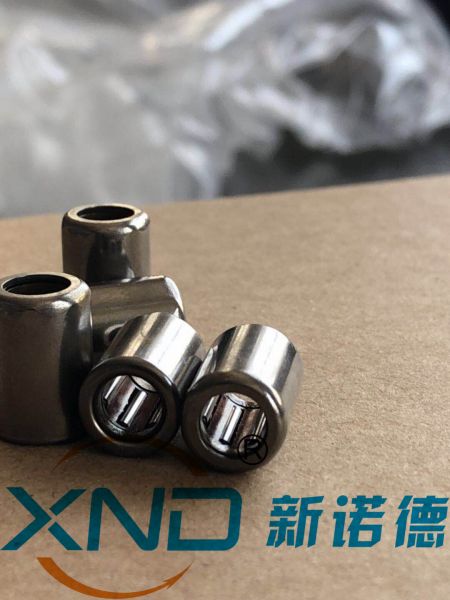

HFL型沖壓外圈滾針離合器

型號： P5F48D2CAADAF0
品牌： XND-新諾德

銷售價：
會員價： 最低起 更多會員價
市場價：
商品評分： (共0人評論)

數量： -+
我要詢價

商品詳情

品牌：XND-新諾德
所屬分類：滾柱式單向離合器
商品編號：G5F48D2CAADAAB

<div style="text-align: center;"><font color="#ff0000" face="Times New Roman" size="7"><strong>XND-HFL型 沖壓外圈滾針離合器</strong></font></div><div style="text-align: center;">
<img src="http://www.sexcamscout.com/public/images/8f/d9/4f/dba7b734038e9a73084cbe3a824693f624d76264.jpg?1743318475#h"></div><p><font size="4">HFL型沖壓外圈滾針離合器是一種帶滾針軸承的外星輪式超越離合器。中間是滾針離合器，兩端各放置一個滾針軸承。滾針是鎖緊元件。鎖緊精度高、空程角很小。為了傳遞較大的轉矩，可并排應用兩個離合器。用以承受一定的壓力。常用于印刷機械、包裝機械、食品機械、輕工機械及測試設備等。</font></p>
<p style="text-align: center;">
<img src="http://www.sexcamscout.com/public/images/b8/4e/ec/ddd5eeb87b7b3c7b53d9d3fbed859d8e3efd9391.jpg?1743317782#h"> </p>
<div><table class="tb_2" cellspacing="0" cellpadding="0" width="553" border="0">
<tbody>
<tr>
<td class="hei1_9" colspan="7">
<p>HFL 型超越離合器基本參數和主要尺寸</p>
</td>
<td class="bai_10" colspan="3">長度單位:mm</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" rowspan="2" width="28">序<br/>號</td>
<td class="tb_line4" rowspan="2" width="104">型號</td>
<td class="tb_line2" height="20" width="60">公稱<br/>轉矩</td>
<td class="tb_line4" height="20" colspan="2">極限轉速<br/>n(r/min)</td>
<td class="tb_line4" colspan="3">外形尺寸</td>
<td class="tb_line4" bgcolor="#ff7f00" rowspan="2" width="36">軸徑</td>
<td class="tb_line4" rowspan="2" width="61">
<p align="center">質量<br/>m( g)</p>
</td></tr>
<tr class="tb_1" bgcolor="#ff7f00">
<td class="tb_line4" bgcolor="#ff7f00">Tn<br/>(N·m)</td>
<td class="tb_line4" bgcolor="#ff7f00" width="44">軸 </td>
<td class="tb_line4" bgcolor="#ff7f00" width="42">外圈</td>
<td class="tb_line4" width="58">內徑d</td>
<td class="tb_line4" width="60">外徑D</td>
<td class="tb_line4" width="60">寬度L</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">1</td>
<td class="tb_line" height="22">HFL0822</td>
<td class="tb_line" height="22">3.15</td>
<td class="tb_line5" height="22">17000</td>
<td class="tb_line" height="22">12000</td>
<td class="tb_line5" height="22">8</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line" height="22">22</td>
<td class="tb_line" height="22">8</td>
<td class="tb_2" height="22">6.3</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">2</td>
<td class="tb_line" height="22">HFL1022</td>
<td class="tb_line" height="22">5.3</td>
<td class="tb_line5" height="22">14000</td>
<td class="tb_line" height="22">11000</td>
<td class="tb_line5" height="22">10</td>
<td class="tb_line5" height="22">14</td>
<td class="tb_line" height="22">22</td>
<td class="tb_line" height="22">10</td>
<td class="tb_2" height="22">7.4</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">3</td>
<td class="tb_line" height="22">HFL1226</td>
<td class="tb_line" height="22">12.2</td>
<td class="tb_line5" height="22">11000</td>
<td class="tb_line" height="22">8000</td>
<td class="tb_line5" height="22">12</td>
<td class="tb_line5" height="22">18</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">12</td>
<td class="tb_2" height="22">18</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">4</td>
<td class="tb_line" height="22">HFL1426</td>
<td class="tb_line" height="22">17.3</td>
<td class="tb_line5" height="22">9500</td>
<td class="tb_line" height="22">8000</td>
<td class="tb_line5" height="22">14</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">14</td>
<td class="tb_2" height="22">20.3</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">5</td>
<td class="tb_line" height="22">HFL1626</td>
<td class="tb_line" height="22">20.5</td>
<td class="tb_line5" height="22">8500</td>
<td class="tb_line" height="22">7500</td>
<td class="tb_line5" height="22">16</td>
<td class="tb_line5" height="22">22</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">16</td>
<td class="tb_2" height="22">22</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">6</td>
<td class="tb_line" height="22">HFL1826</td>
<td class="tb_line" height="22">24.1</td>
<td class="tb_line5" height="22">7500</td>
<td class="tb_line" height="22">7500</td>
<td class="tb_line5" height="22">18</td>
<td class="tb_line5" height="22">24</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">18</td>
<td class="tb_2" height="22">24.4</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">7</td>
<td class="tb_line" height="22">HFL2026</td>
<td class="tb_line" height="22">28.5</td>
<td class="tb_line5" height="22">7000</td>
<td class="tb_line" height="22">6500</td>
<td class="tb_line5" height="22">20</td>
<td class="tb_line5" height="22">26</td>
<td class="tb_line" height="22">26</td>
<td class="tb_line" height="22">20</td>
<td class="tb_2" height="22">27</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">8</td>
<td class="tb_line" height="22">HFL2530</td>
<td class="tb_line" height="22">66</td>
<td class="tb_line5" height="22">5500</td>
<td class="tb_line" height="22">5500</td>
<td class="tb_line5" height="22">25</td>
<td class="tb_line5" height="22">32</td>
<td class="tb_line" height="22">30</td>
<td class="tb_line" height="22">25</td>
<td class="tb_2" height="22">44</td></tr>
<tr class="tb_line">
<td class="tb_line" height="22">9</td>
<td class="tb_line" height="22">HFL3030</td>
<td class="tb_line" height="22">90</td>
<td class="tb_line5" height="22">4500</td>
<td class="tb_line" height="22">4500</td>
<td class="tb_line5" height="22">30</td>
<td class="tb_line5" height="22">37</td>
<td class="tb_line" height="22">30</td>
<td class="tb_line" height="22">30</td>
<td class="tb_2" height="22">51</td></tr>
<tr class="tb_line" bgcolor="#bdbec0">
<td class="tb_line" height="22">10</td>
<td class="tb_line" height="22">HFL3530</td>
<td class="tb_line" height="22">121</td>
<td class="tb_line5" height="22">3900</td>
<td class="tb_line" height="22">3900</td>
<td class="tb_line5" height="22">35</td>
<td class="tb_line5" height="22">42</td>
<td class="tb_line" height="22">30</td>
<td class="tb_line" height="22">35</td>
<td class="tb_2" height="22">58</td></tr></tbody></table></div>
